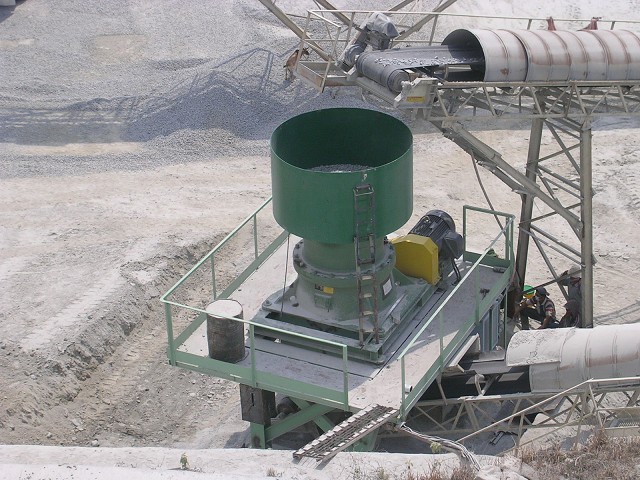

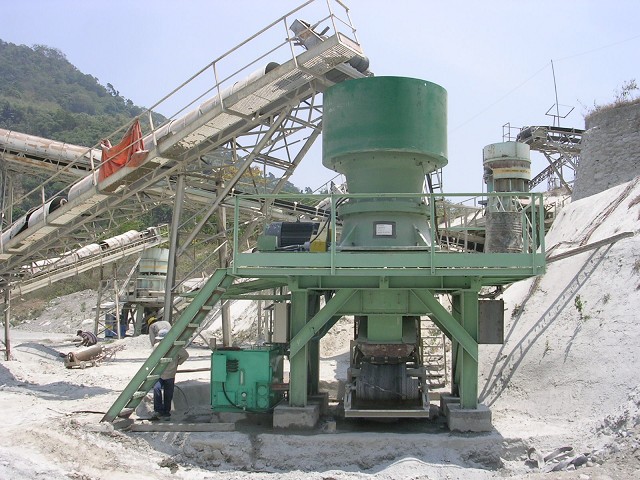

CHARACTERISTICS OF THE GNL SERIES

- The GNL gyratory crusher has a high crushing capacity relative to the mantle diameter due to the large angle of the mantle inclination in the crushing chamber

- For the best crushing capacity, GNL-H series are equipped with the rotating eccentric and non-choke crushing chamber

- GNL-H are structured with a large-diameter main shaft and strong frame to sustain it's high crushing capacity and the crushing of extremeely hard materials

- The high reduction ratio provided by GNL-H crushers produces materials ideal for the further processing in tertiary crusher and aggregate products suitable for use in base course

- The alloy steel spiral bevel gear is applied to the gear and pinion and provides a sufficient power yet silent operation

- Automatic setting adjustment system provides all operating adjustment and overload monitoring functions required to run crusher in a comfortable operation, and enables the operation at closed-circuit with most effective discharge opening

- Overall, GNL-H series, structured with a large-diameter main shaft and strong frame, provides high crushing capacity, high quality crushed products, easy operation and maximum safety

Characterictic Features of the GNL Series

GNL-H Series is easy to adjust the discharge setting because of a hydraulic crusher. Automatic setting adjustment system is especially designed for GNL-H crusher. It provides all operating adjustment and overload monitoring functions required to run crusher in a comfortable operation, and it enabled the operation at closed-circuit with most effective discharges opening.
